01 /

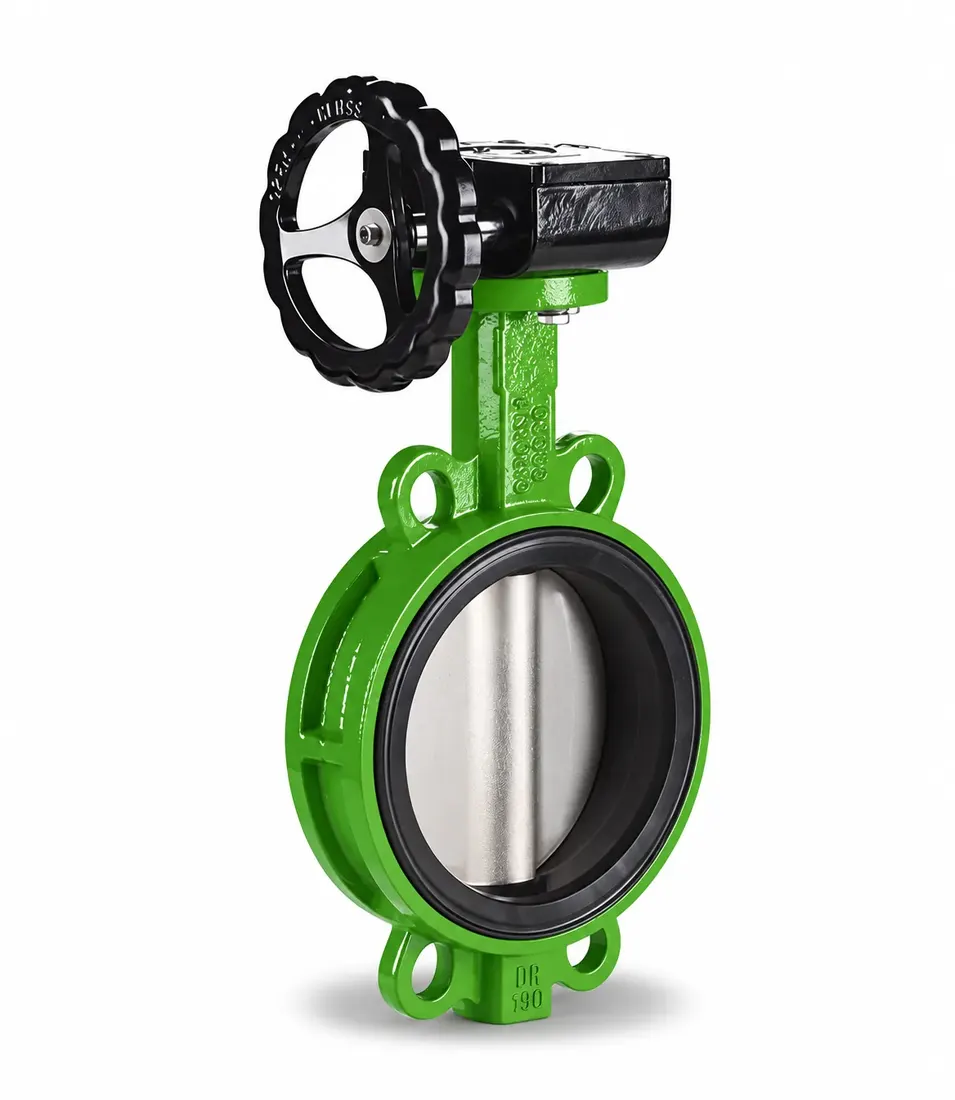

Concentric Butterfly Valves
Concentric butterfly valves manufactured to EN 593 and tested to API 598 or EN 12266.
View details ↗
PRODUCT OVERVIEW
Butterfly Valves
Concentric, double eccentric and triple offset designs for application-specific isolation.
- Three butterfly valve designs
- Wafer, lug or flanged connections, according to the selected design
- Manual, pneumatic or electric operation
03 PRODUCT OPTIONS
Explore butterfly valves.
02 /

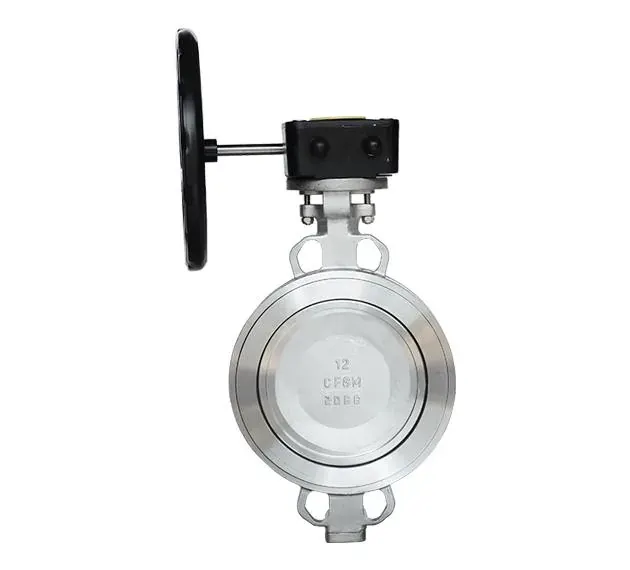

Double Eccentric Butterfly Valves
Double offset butterfly valves manufactured to API 609 and tested to API 598.
View details ↗
03 /

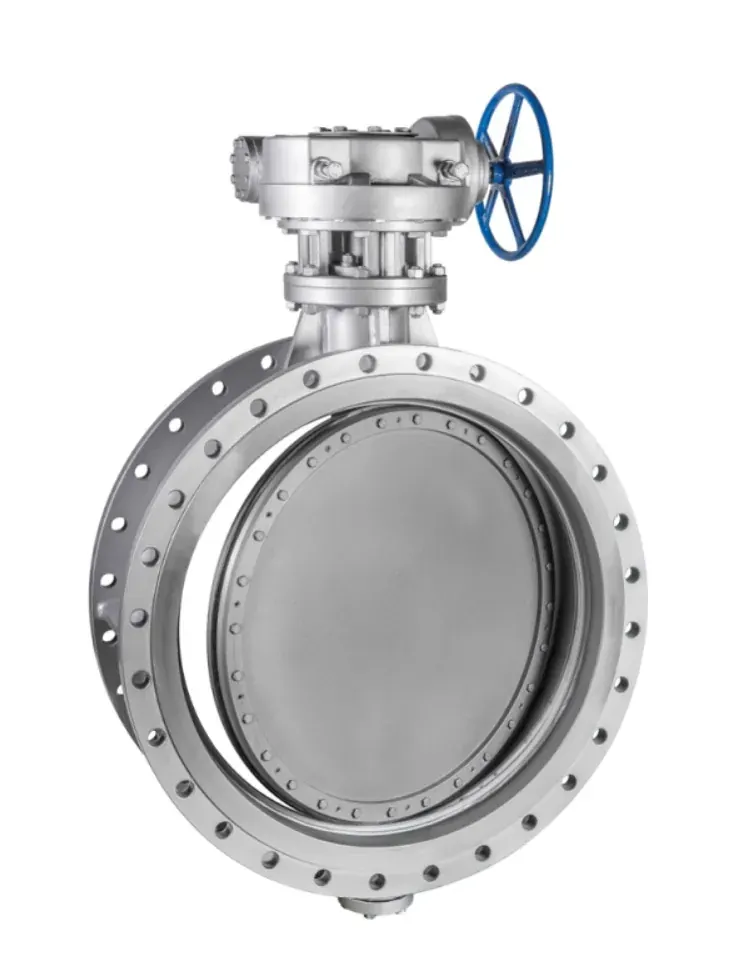

Triple Offset Butterfly Valves
Triple offset butterfly valves manufactured to API 609 and tested to API 598.
View details ↗Product Description
Butterfly valves use a rotating disc to open or isolate the pipeline. The range includes concentric, double eccentric and triple offset constructions, with seating systems selected for the medium, temperature and shut-off requirements. Choose the design below to review its standards, materials and operating range.
Design Description
- Quarter-turn disc operation with a compact installation envelope
- Concentric, double eccentric and triple offset sealing arrangements
- Connection style and face-to-face dimensions matched to the selected design
- Seat, disc and body materials selected together for the process conditions
- Manual gearbox or powered actuation coordinated with the required operating torque
Model-specific documents
Request the applicable datasheet, dimensional drawing, material details and inspection documentation for your selected configuration.
