PRODUCT OVERVIEW

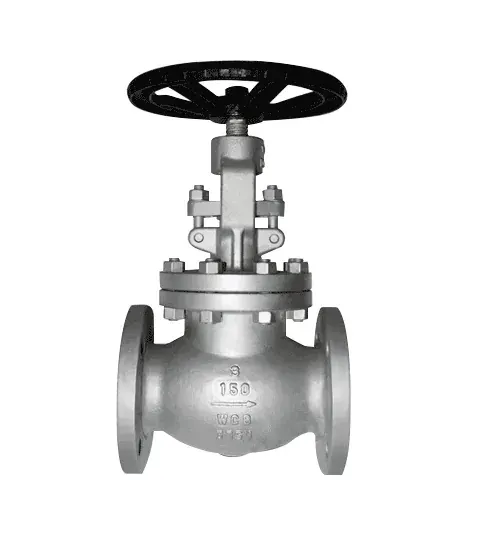

Globe Valves
Linear-motion valve options for isolation and regulating duties.
- On/off or regulating duty according to the selected trim
- Pressure drop, flow conditions and shut-off requirements
- Body, trim, packing and actuator compatibility
Product Description
Globe valves are manufactured to the latest edition of BS 1873 and tested to API Standard 598.
Applicable Standards
- Globe valve design according to BS 1873, ASME B16.34
- Face to face ASME B16.10
- End flanges ASME B16.5 / ASME B16.47
- Butt welding ends ASME B16.25
- Inspection and testing API 598
Technical Specifications
| Pressure Range | ASME CL150, CL300, CL600, CL900, CL1500 |
|---|---|
| Working Temperature | -50°C to 650°C |
| Size Range | 2″ to 24″ |
| End Connection | Flanged, butt weld |
| Body Material | A216 WCB, A217 WC6/WC9, A351 CF8/CF8M, A352 LCB/LCC |
| Operation | Manual, handwheel, gear, electric, pneumatic, hydraulic |
Design Description
- Outside screw and yoke (OS&Y)
- Bolted bonnet and pressure seal
- Flexible wedge, fully guided
- Rising stem and non-rising stem
- Gear operator available
- Flanged ends
- Butt welding ends
- Seat welded with Stellite or 13% Cr
Model-specific documents
Request the applicable datasheet, dimensional drawing, material details and inspection documentation for your selected configuration.
